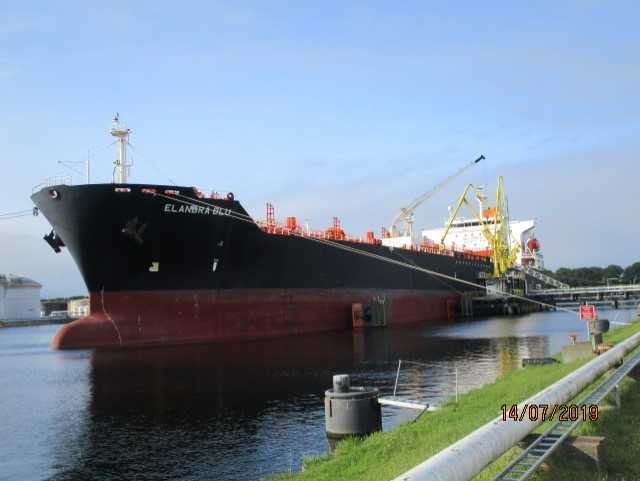

Elandra Blu
Class
1A1 Tanker for chemicals and oil BIS Clean E0 ESP NAUTICUS(Newbuilding) SPM TMON VCS(2)
Built by
SPP Shipbuilding Co., Ltd., Korea
Built in
2008
Flag
Liberia
Call sign
D5UG3
IMO NO.
9396749
Loading capacity (t)
50695

Technical specifications



MAIN DIMENSIONS

MACHINERY

CARGO HANDLING

Length over all:

183.00 m.

Main engine:

MAN B&W Licensee

  6S50MC-C (MK-VII)

Cargo pumps:

12 hydraulic driven submerged centrifugal pumps, capacity 600 m³/h each

Breadth moulded:

32.2 m.

Nominal output:

8177 kW

Heating:

Stainless steel coils

Depth moulded:

19.1 m.

Fuel:

FO 380 CST

Tank cleaning system:

Fixed tank cleaning machines

Draught maximum:

13.00 m.

Bow thruster:

No

IGS:

Inert Gas Generator, capacity 4500 m³/h

Tons per cm of draught:

51.99 t.

Service speed:

15.7 knots







CAPACITIES

  TONNAGE (t)

 MANIFOLD DERRICKS/CRANE

CARGO TANK COATING

(98% volume)

m3

INTERNATIONAL

PANAMA

SUEZ

1 crane 15 mt capacity

Epoxy paint

Total cargo tank:

52146.3

GRT

NRT

BRT

NRT

BRT

NRT





Slop tanks:

1400.0

30040

13312

0.0

24934

0.0

27022





Total capacity:

53546.3

















Grades of cargo:

4

















SBT:

Wing tanks P/S Nos 1 - 6, forepeak, afterpeak

















SBT capacity:

24250.9

















Bunker capacity:

FO

1558.4

















DO

177.1
