LSC pārrauga mūsdienīgus un modernus tankkuģus

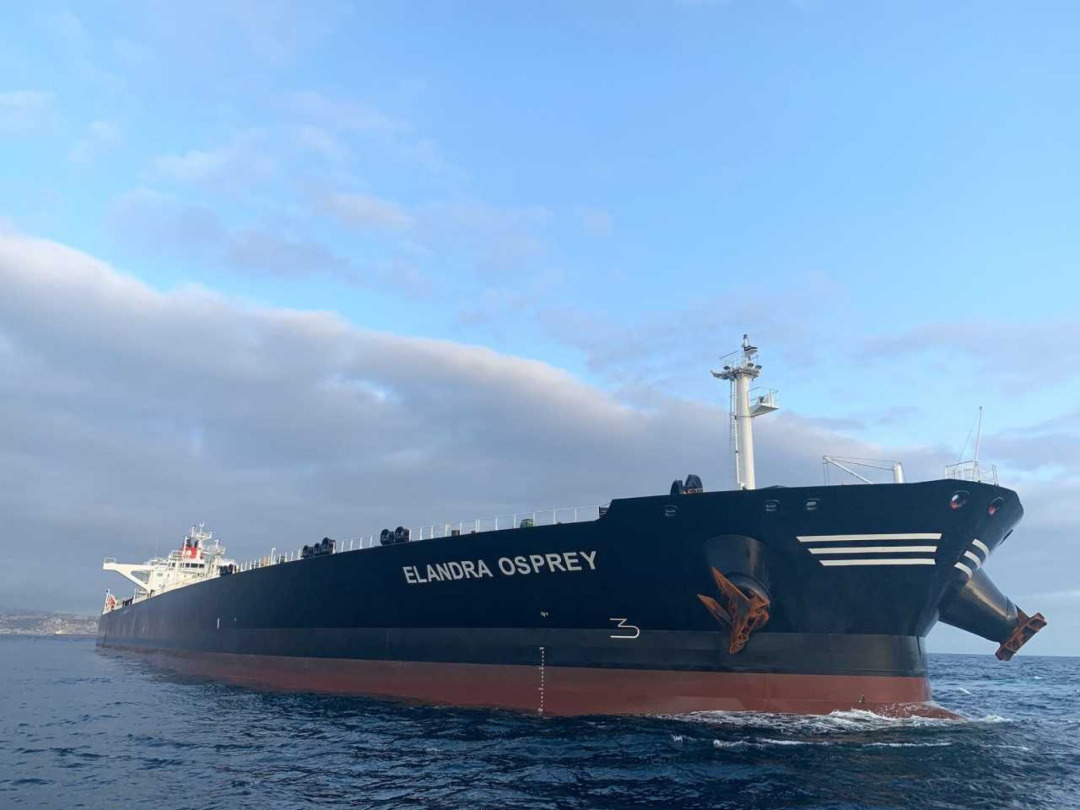

Elandra Osprey
- Klase
- +1A, tanker for oil, ESP, CSR, BIS, VCS-2, EO, TMON, BWM-T, COAT-PSPC (B,C), LCS, CLEAN, recyclable, SPM.
- Ražotājs
- Hyundai Samho Heavy Industries Co., Ltd., SAMHO Shipyard, Korea
- Gads
- 2018
- Karogs
- Liberia
- Call sign
- D5SZ9
- IMO NO.
- 9817626
- Kravnesība (t)
- 172374.4 m3
Technical specifications
|
MAIN DIMENSIONS |
MACHINERY |
CARGO HANDLING |
|||
|
Length over all: |
277.17 m |
Main engine: |
Hyundai – WINGD 6X72 |
Cargo pumps: |
Single stage steam turbine, driven ver. centrifugal single stage, 4000 m3/h X 135mTH |
|
Breadth moulded: |
48.04 m |
Nominal output: |
16300 kW |
IGS capacity : |
15000 m3/hr |
|
Depth moulded: |
23.10 m |
Fuel: |
FO 380 CST |
|
|
|
Draught maximum: |
17. 15 m |
Bow thruster: |
No |
|
|
|
Tons per cm of draught: |
118. 70t |
Service speed: |
14.6 knots |
|
|
|
CAPACITIES |
TONNAGE (T) |
MANIFOLD DERRICKS/CRANE |
CARGO TANK COATING |
|||
|
(98% volume) |
168927.2 m3 |
INTERNATIONAL |
2 cranes (P and S) SWL 20t, R=19m |
Epoxy tank coating |
||
|
Total cargo tank: |
172374.4 m3 |
GRT |
NRT |
|
|
|
|
|
|
81394 |
51730 |
|
|
|
|
SBT: |
Wing tanks No 1 – 6, forepeak, afterpeak |
|
|
|
|
|
|
SBT capacity total: |
52417.7 m3 |
|
|
|
|
|
|
Bunker capacity total: |
FO |
3180.6 m3 |
|
|
|
|
|
DO |
515.9 m3 |
|
|
|
|
|
