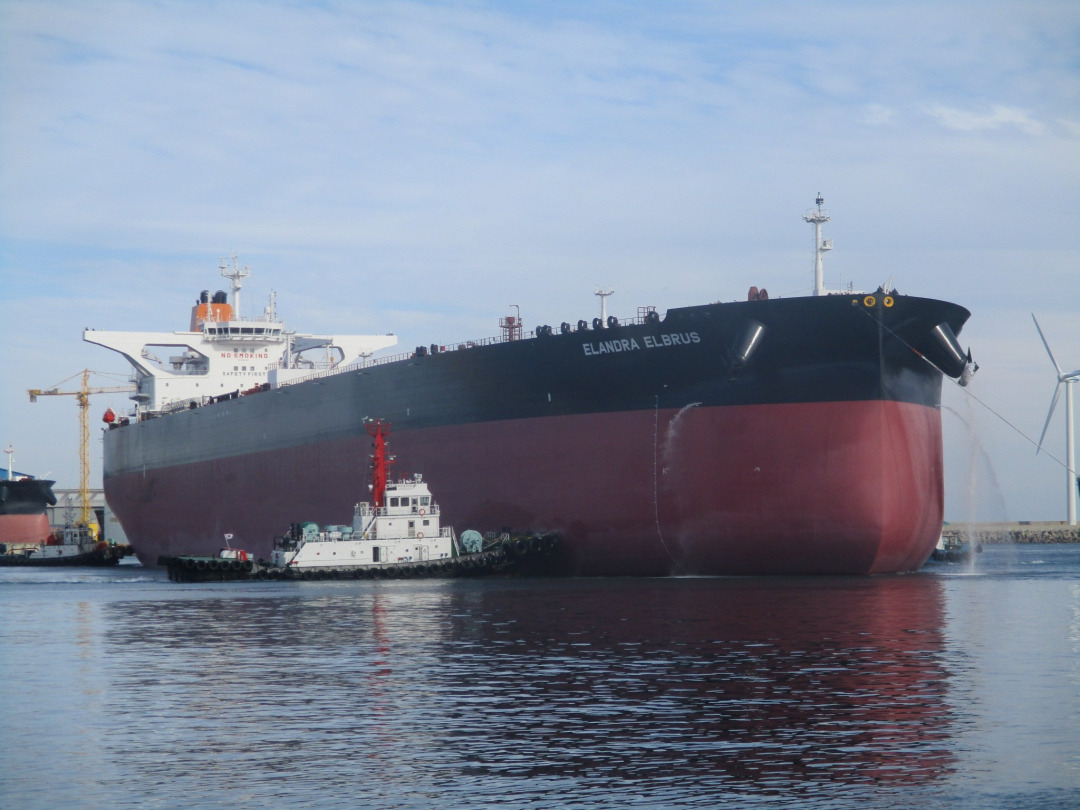

Elandra Elbrus
- Klase
- Lloyd's Register of Shipping, +100A1 Double Hull Oil Tanker, CSR, ESP, ShipRight(ACS(B, C), CM), IWS, LI, DSPM4, ECO(BWT, IHM, P, VECS-L, IBTS), +LMC, EGCS(Open), IGS, UMS, COW(LR) with the descriptive notes of ShipRight (BWMP(T), SERS, SCM), ETA
- Ražotājs
- Hyundai Heavy Ind., Co., Ltd. (HHI)
- Gads
- 2020
- Karogs
- Liberia
- Call sign
- D5TN5
- IMO NO.
- 9858450
- Kravnesība (t)
- 341509 m3
Technical specifications
|
MAIN DIMENSIONS |
MACHINERY |
CARGO HANDLING |
|||
|
Length over all: |
330 m |
Main engine: |
One(1) Hyundai-MAN B&W 7G80ME-C9.5-HP SCR |
Cargo pumps: |
Three stage steam turbine, driven ver. centrifugal single stage, 5000 m3/h X 150 mTH (3 pumps) |
|
Breadth moulded: |
60 m |
Nominal output: |
24500 kW |
IGS capacity : |
18750 m3/hr |
|
Depth moulded: |
29.70 m |
Fuel: |
FO 380 CST |
|
|
|
Draught maximum: |
21.70 m |
Bow thruster: |
No |
|
|
|
Tons per cm of draught: |
176.50 t |
Service speed: |
14.8 knots |
|
|
|
CAPACITIES |
TONNAGE (T) |
MANIFOLD DERRICKS/CRANE |
CARGO TANK COATING |
|||
|
(98% volume) |
334678.7 m3 |
INTERNATIONAL |
2 cranes (P and S) SWL 20t |
Epoxy tank coating |
||
|
Total cargo tank: |
341509.00 m3 |
GRT |
NRT |
|
|
|
|
|
|
154499 |
106657 |
|
|
|
|
SBT: |
Wing tanks No 1 – 5, forepeak, afterpeak |
|
|
|
|
|
|
SBT capacity total: |
88191.4 m3 |
|
|
|
|
|
|
Bunker capacity total: |
FO |
6241.7 m3 |
|
|
|
|
|
DO |
1013.8 m3 |
|||||
